HS Code: 59113200

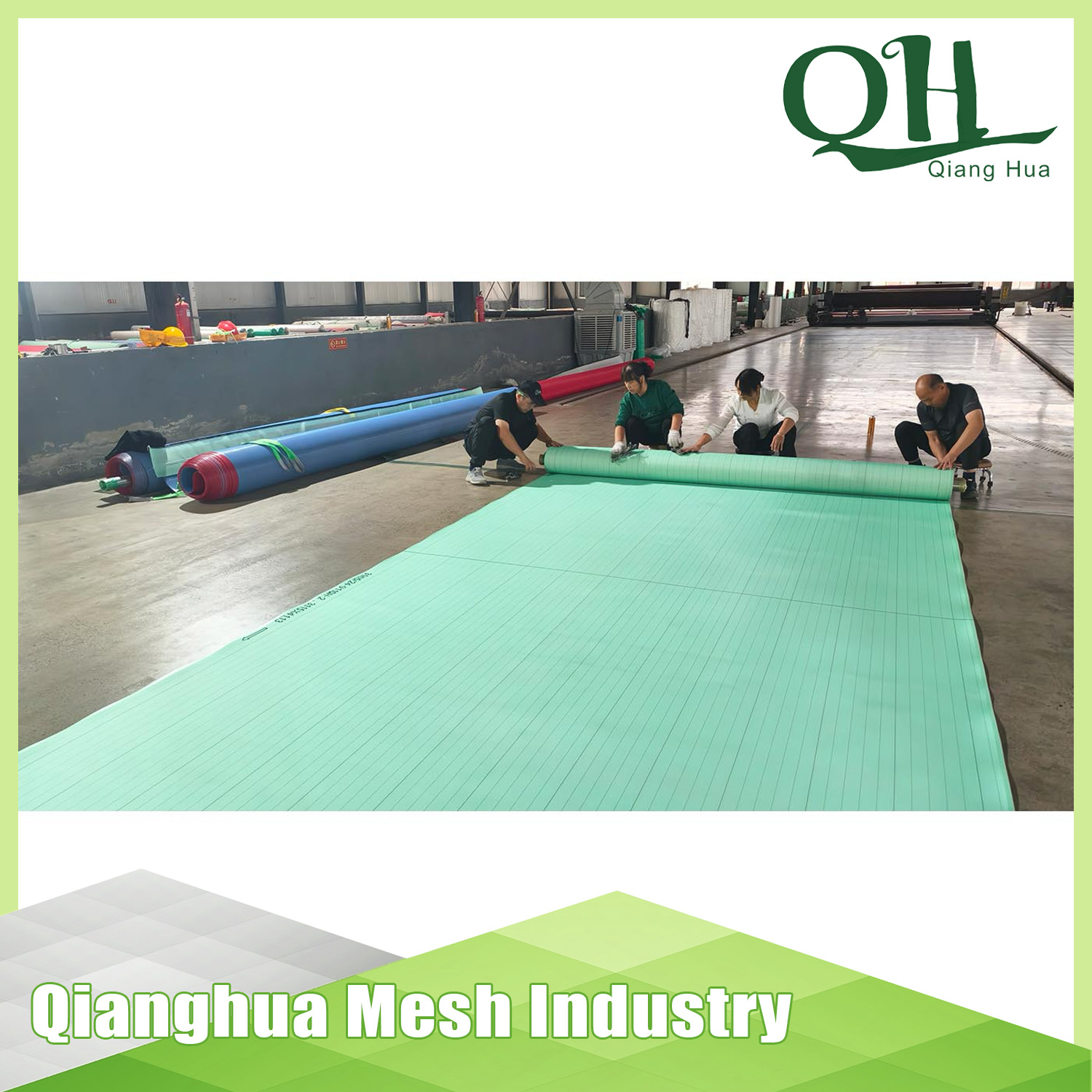

Transport Package: Plywood Case, Pallet
Material: Polyester(PET), Polyamide(PA)
Max Width: 13.5m
Max length: 100m
Key word: Paper Machine Clothing, Forming Grid, Forming Mesh Wire, Forming Section Screen, High Speed Tissue Machine, Fourdrinier Paper Machine, Crescent Former Tissue Machine, Vacuum Cylinder, Packing Cardboard Mill, Recycled Short fiber Pulp, Printing Paper, Inner Board, Kraft Liner, Softwood Hardwood Cellulose Virgin Pulp, Duplex paper, Toilet Napkin
Technical data
 |

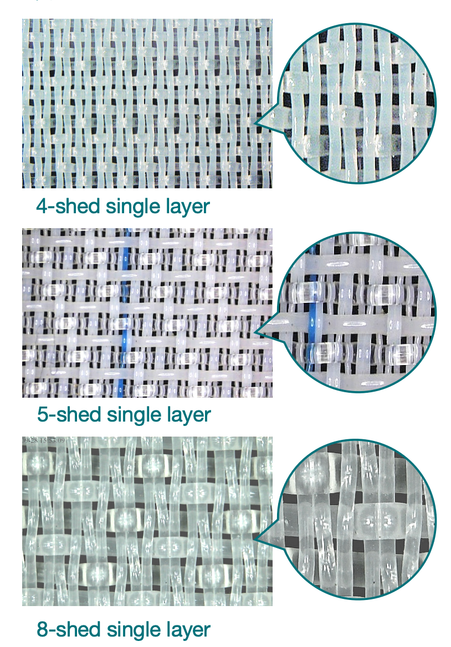

4-shed single layer Polyester forming fabric is a standard type of polyester forming fabric in paper making, mainly used for producing cultural paper, printing paper, packing paper and so on. |
| 5-shed single layer Polyester forming fabric is suitable for making healthy, culture and packing papers. | |
| 8-shed single layer Polyester forming fabric is the most wear-resisting one in the single layer forming fabrics, which have long performance life, but mesh print is relatively deep. It is mainly used for copying the paper making bag, craft paper, cardboard, corrugated paper. |
 |
 |
| Item | Diameter ( mm ) | Density ( thread/cm ) | Air permeability (m3/m2h) | ||
| Warp | Weft | Warp | Weft | ||

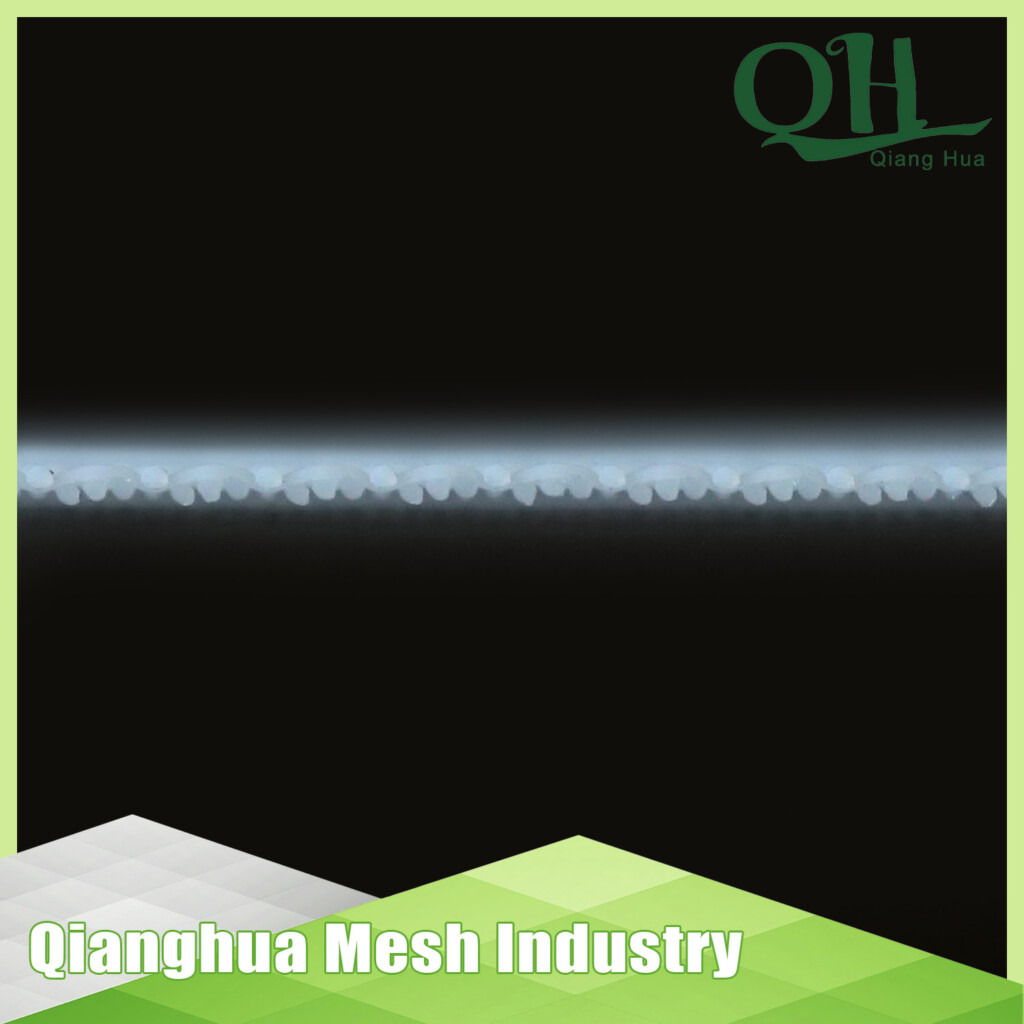

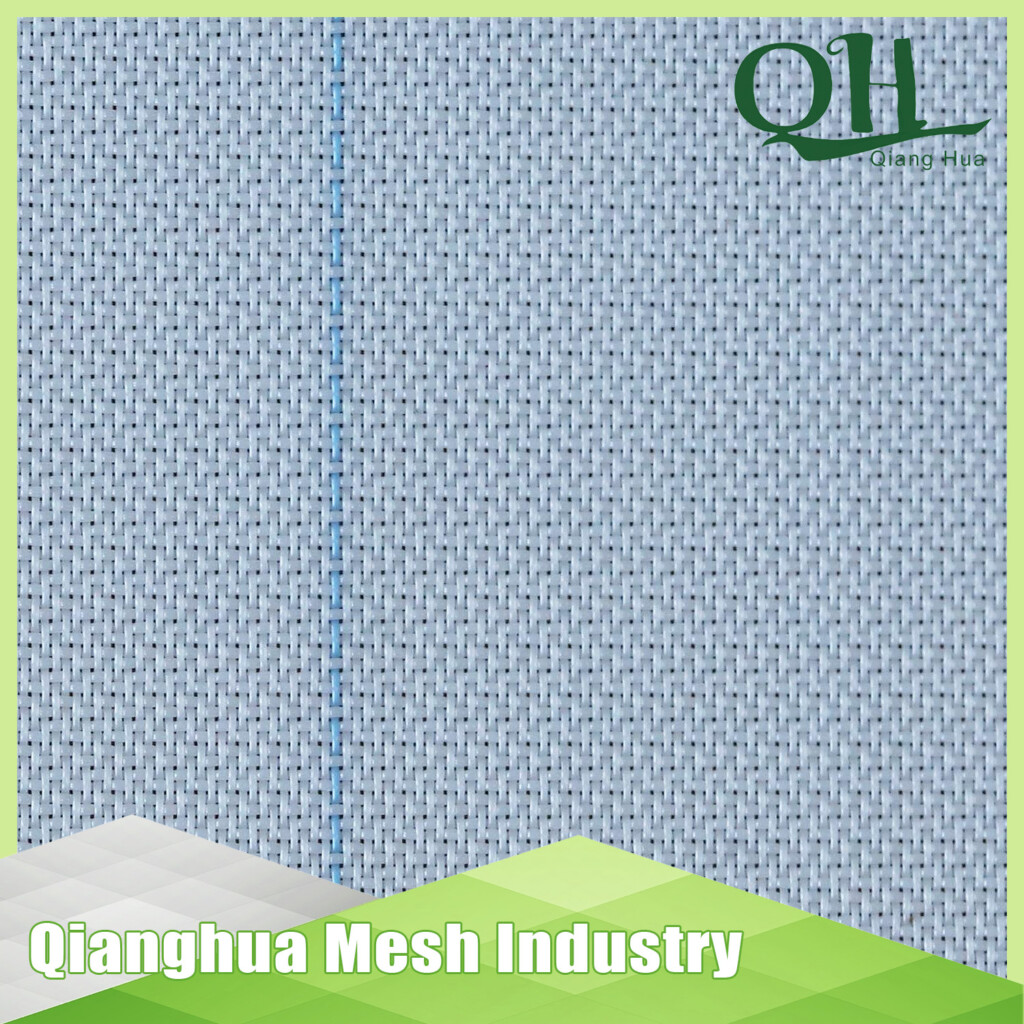

| CXW31204 | 0.18 | 0.22 | 34.5-35.5 | 27.5-28.5 | 7900 |
| CXW27274 | 0.2 | 0.27 | 30 | 21.5 | 7800 |

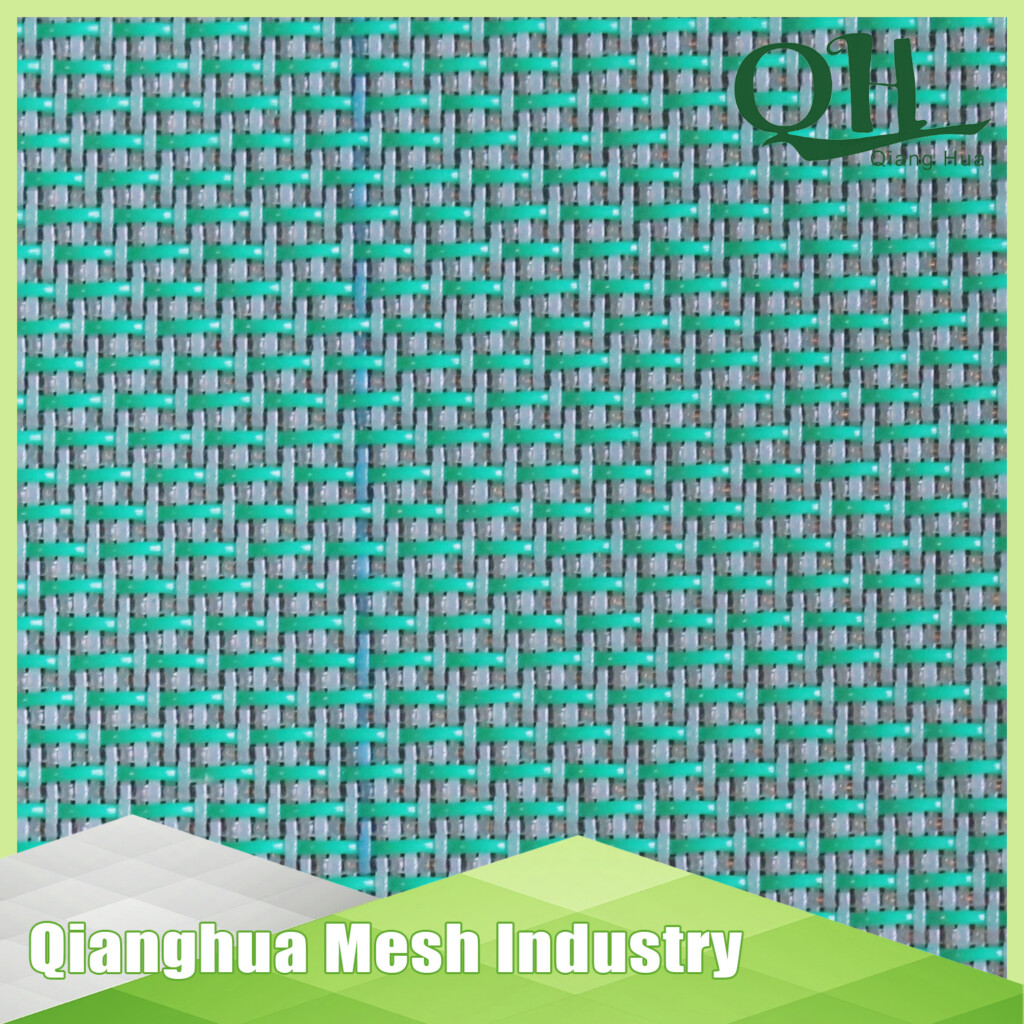

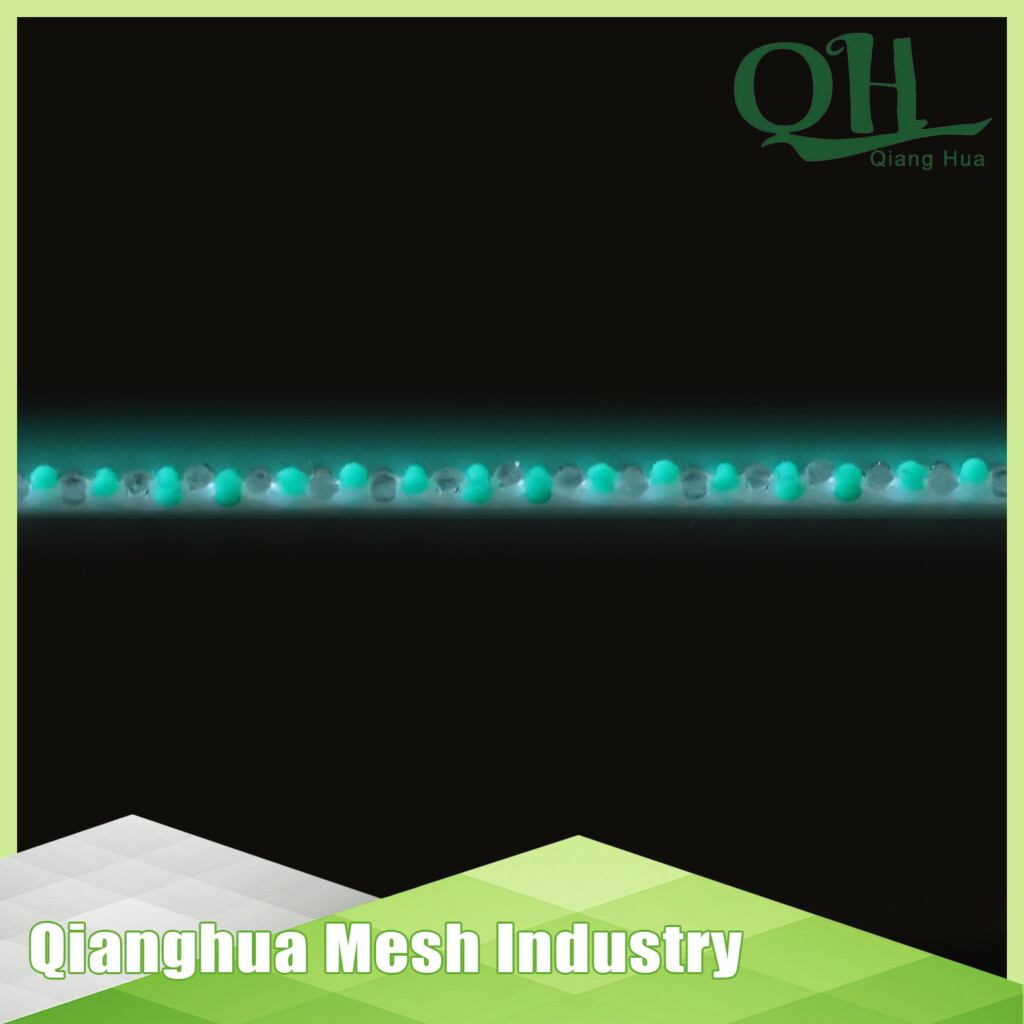

| CXW31215 | 0.2 | 0.21 | 35 | 32 | 7000 |

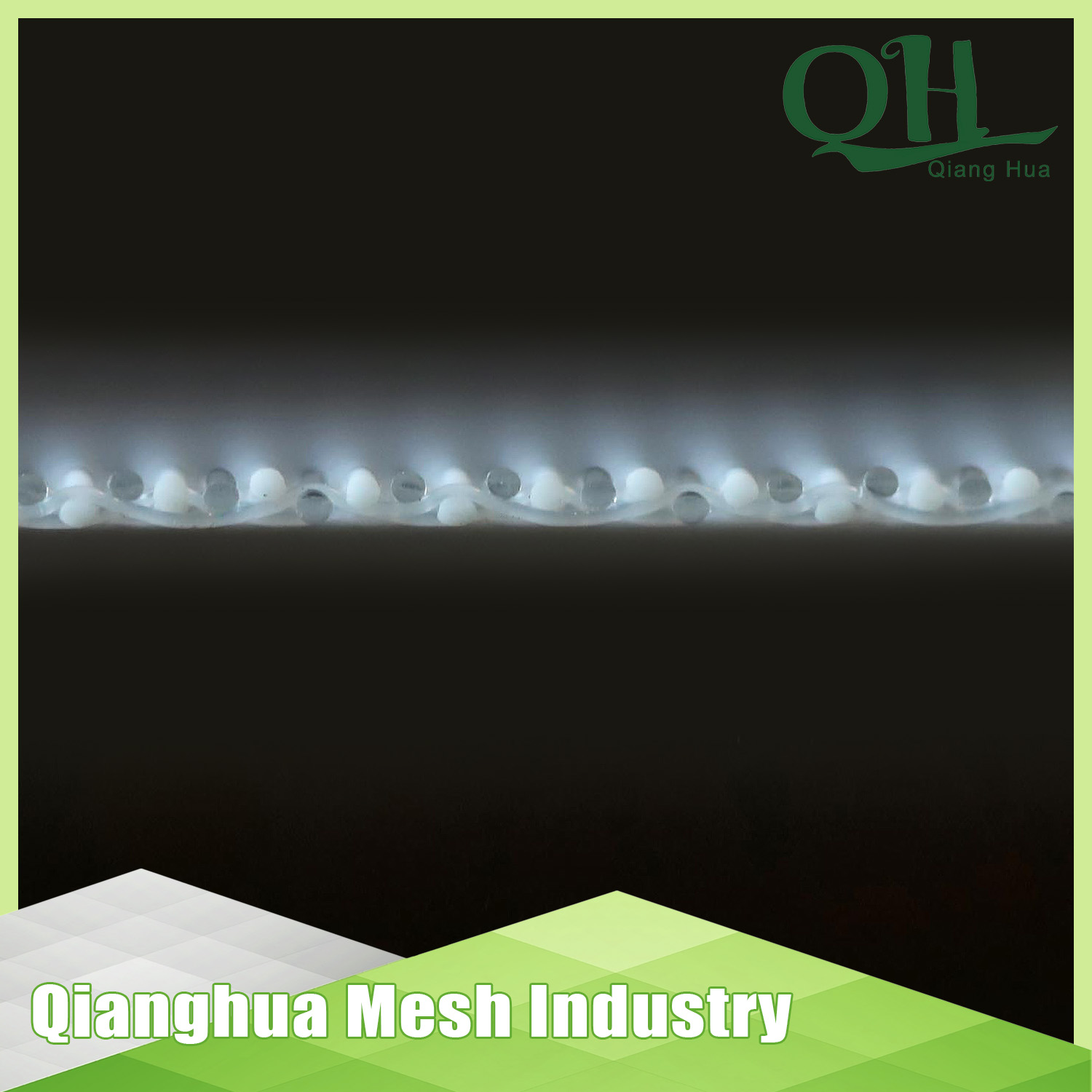

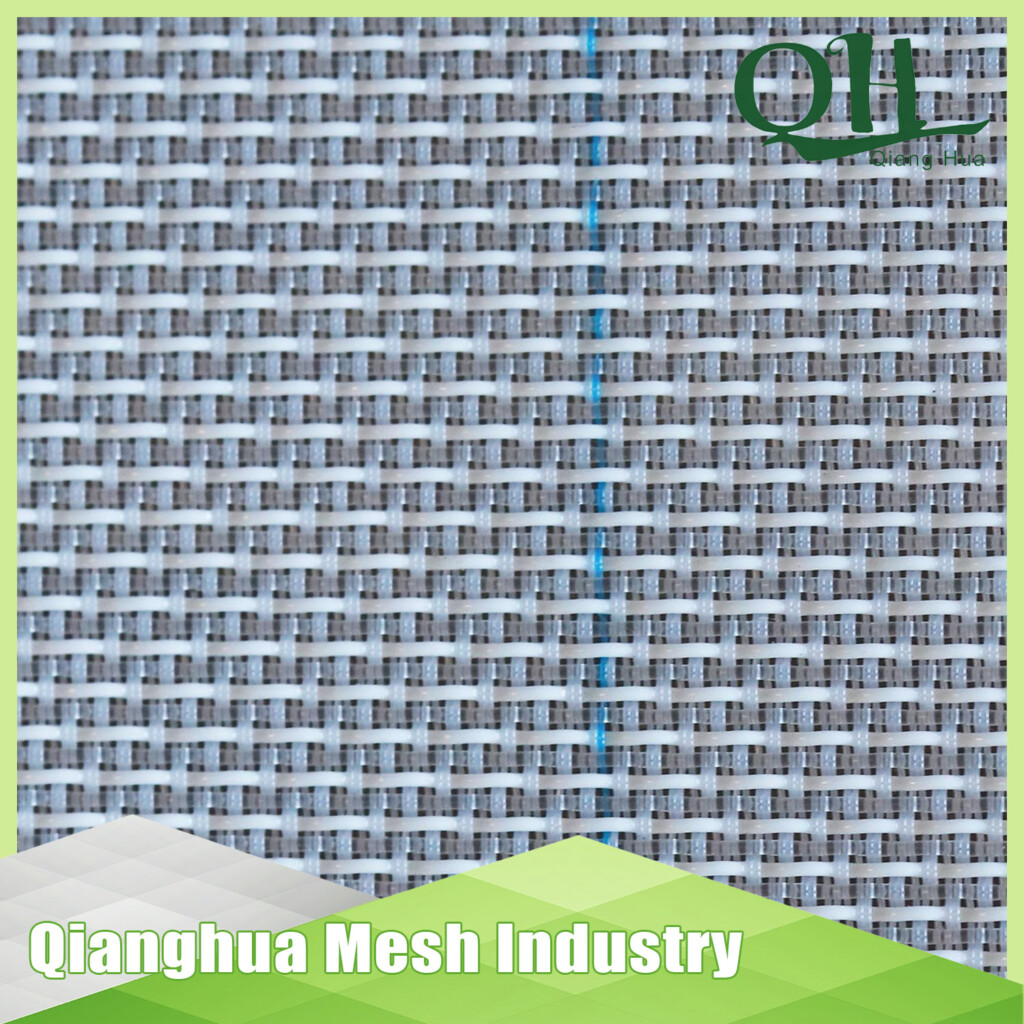

| CXW25458 | 0.24 | 0.45 | 27.5-28.5 | 14.5-15.5 | 7850 |
Our Factory
With over 40 years of experience, Qianghua Mesh specializes in the production of high-quality industrial fabrics.

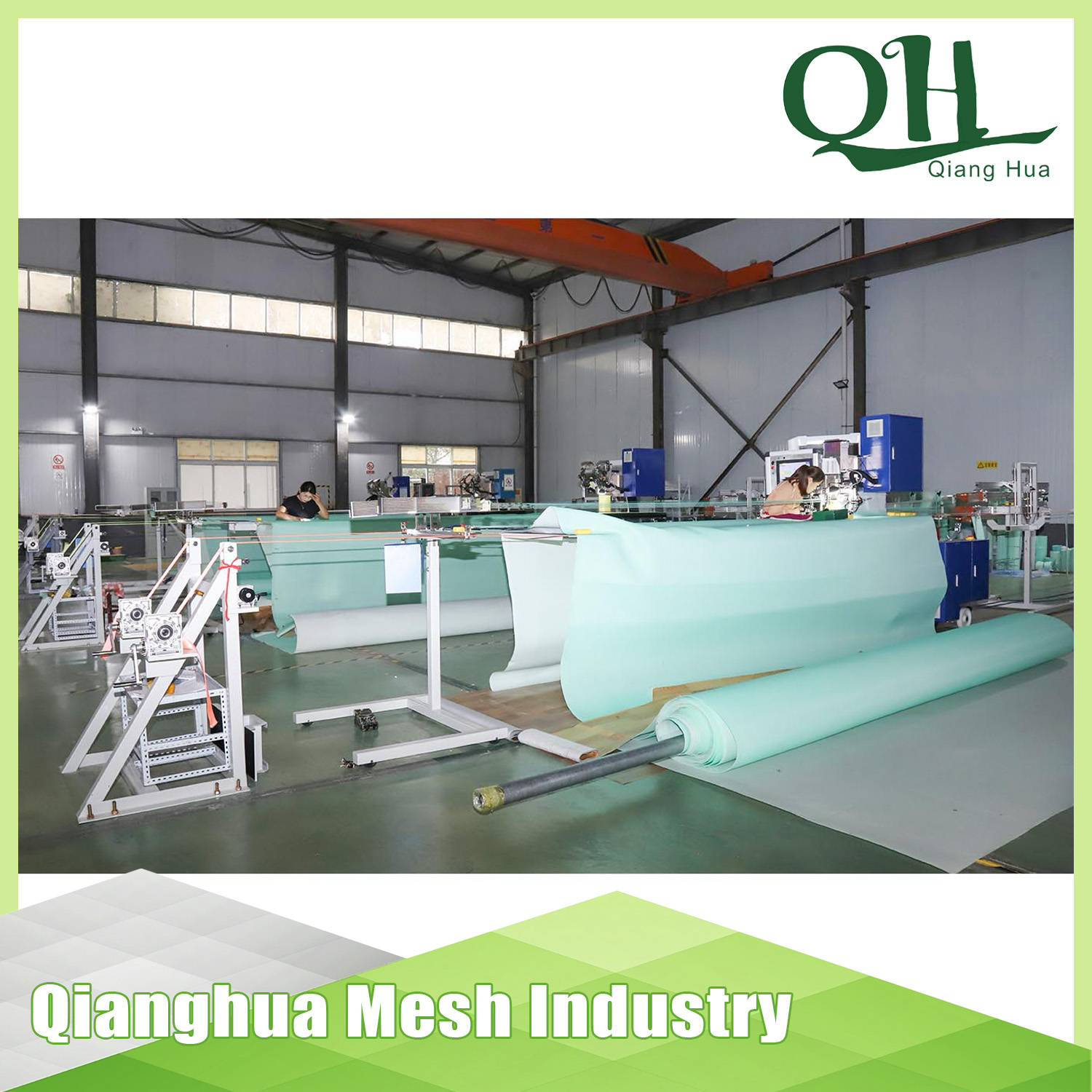

Our state-of-the-art factory is equipped with advanced machinery and a skilled team, enabling us to deliver reliable and efficient solutions for a variety of industries.
Why Choose Us?
Advanced Technology: Our imported weaving machines ensure precision and high output.
Customization: Products are tailored to meet specific customer needs.
Global Reach: Trusted by customers in over 50 countries.
Sustainability: We are committed to eco-friendly production practices.
We take pride in delivering products that combine quality, innovation, and reliability.
Whether you’re in paper making, filtration, or other industries, Qianghua Mesh is here to support your success.
Contact us to learn more about how we can serve your business needs!
| Why Choose Our Forming Fabrics?
Precise Sheet Formation: Designed for uniform and high-quality paper sheet formation.
|
 |
 |
 |
 |
Forming fabrics are a crucial component in the paper making process, used in the forming section of a paper machine. These fabrics play a key role in shaping and dewatering the paper sheet as it forms from the pulp. |
| Why Choose Our Forming Fabrics?
Precise Sheet Formation: Designed for uniform and high-quality paper sheet formation.
|
|
|
|
|
Forming fabrics are a crucial component in the paper making process, used in the forming section of a paper machine. These fabrics play a key role in shaping and dewatering the paper sheet as it forms from the pulp. |
Qianghua mesh focused in pulp and paper industry, municipal wastewater treatment, juice production line, nonwoven production line, corrugated board production line and so on.
Main products: Forming fabrics, Dryer fabric, Press felt, Filter belt, belt for Nonwoven, Corrugator belt...
