HS Code: 59113200
Transport Package: Plywood Case, Pallet
Material: Polyvinylidene Fluoride(PVDF)
Max length: 100m
Key word: Paper Machine Clothing, Cylinder Mould Paper Machine, Polyester Shrinks Cover Fabric, Thickener Drum Filter, Shrinkable Sleeve, Shrink Grid, Cooking Plant Mesh Belt, Tissue Machine, Toilet Napkin paper mill, Recycled Short fiber Pulp, Softwood Hardwood Cellulose Virgin Pulp
Technical data
 |

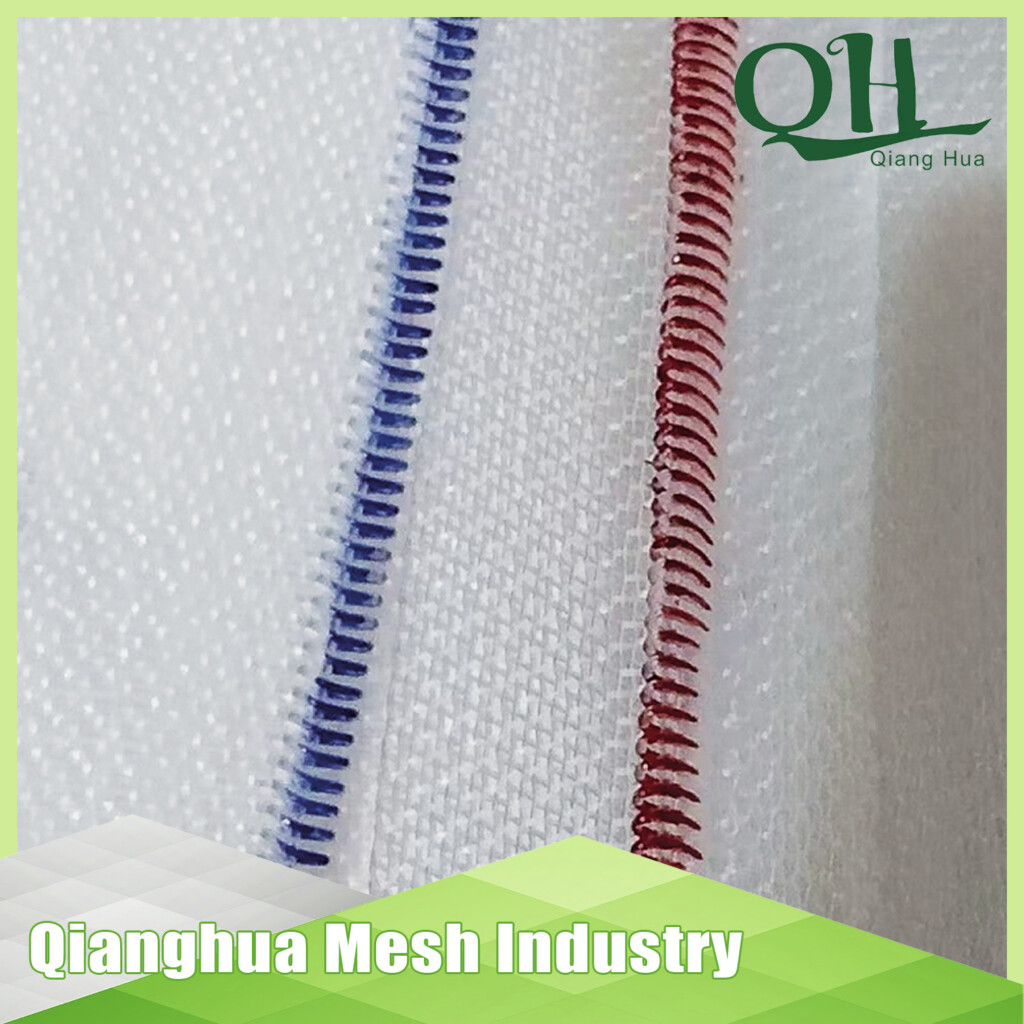

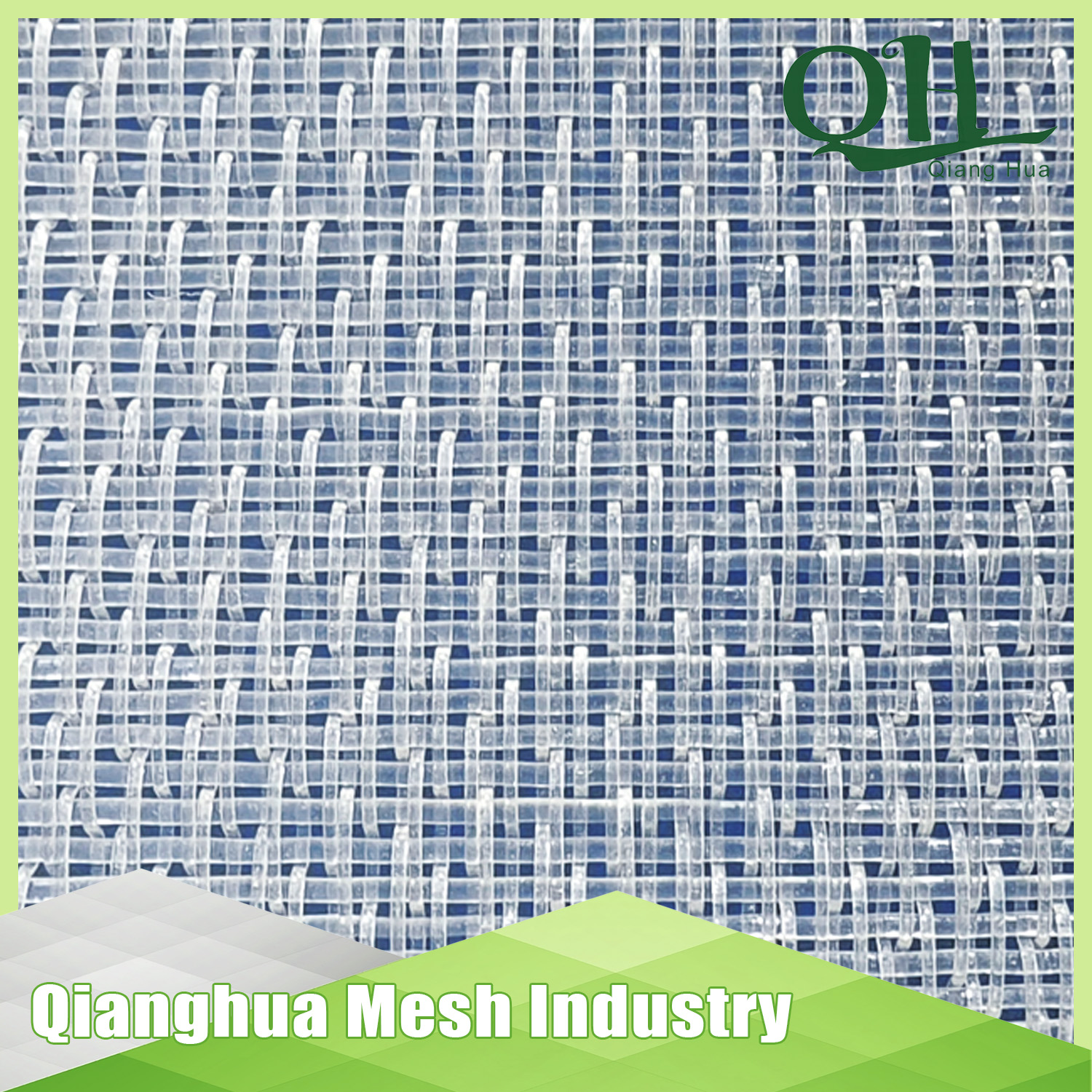

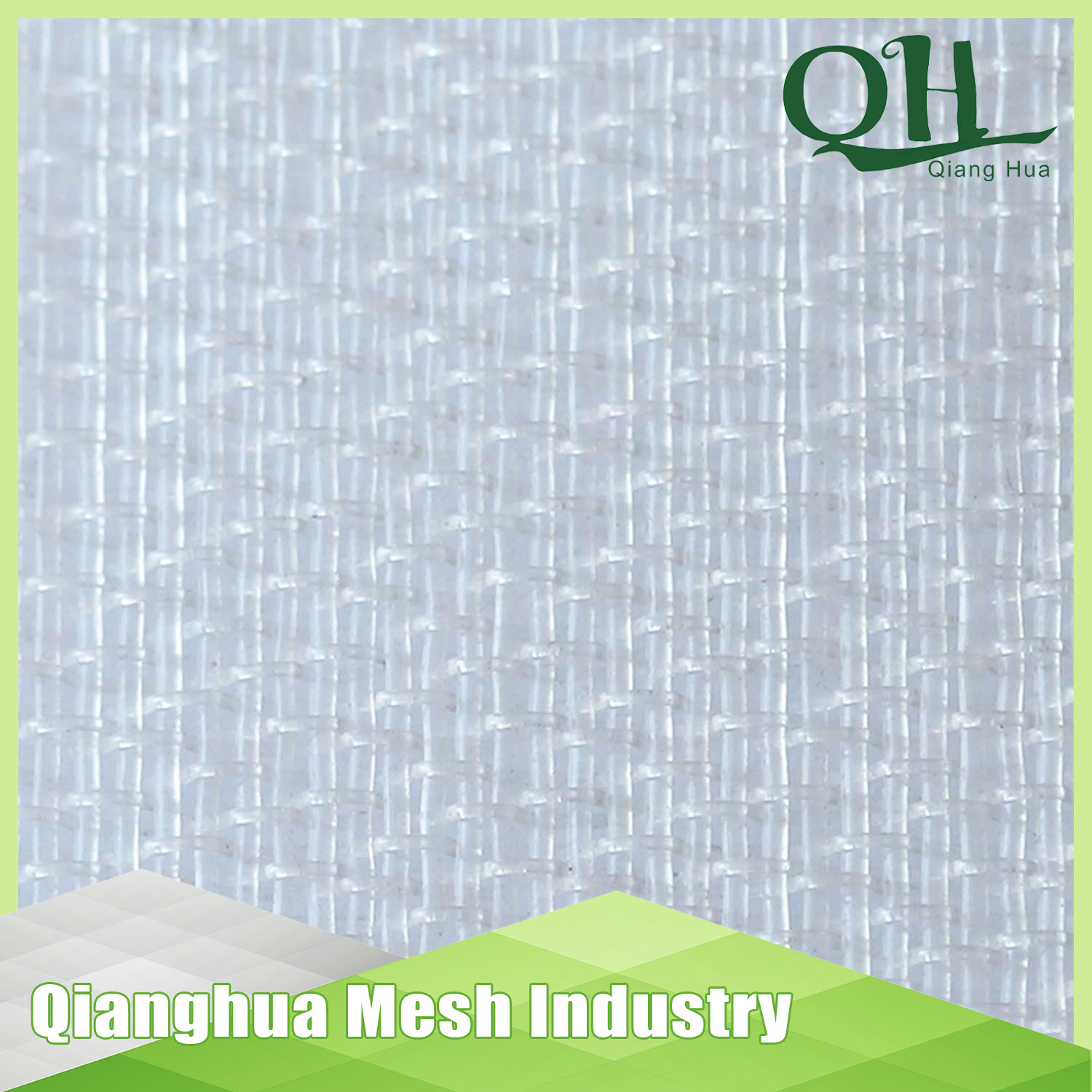

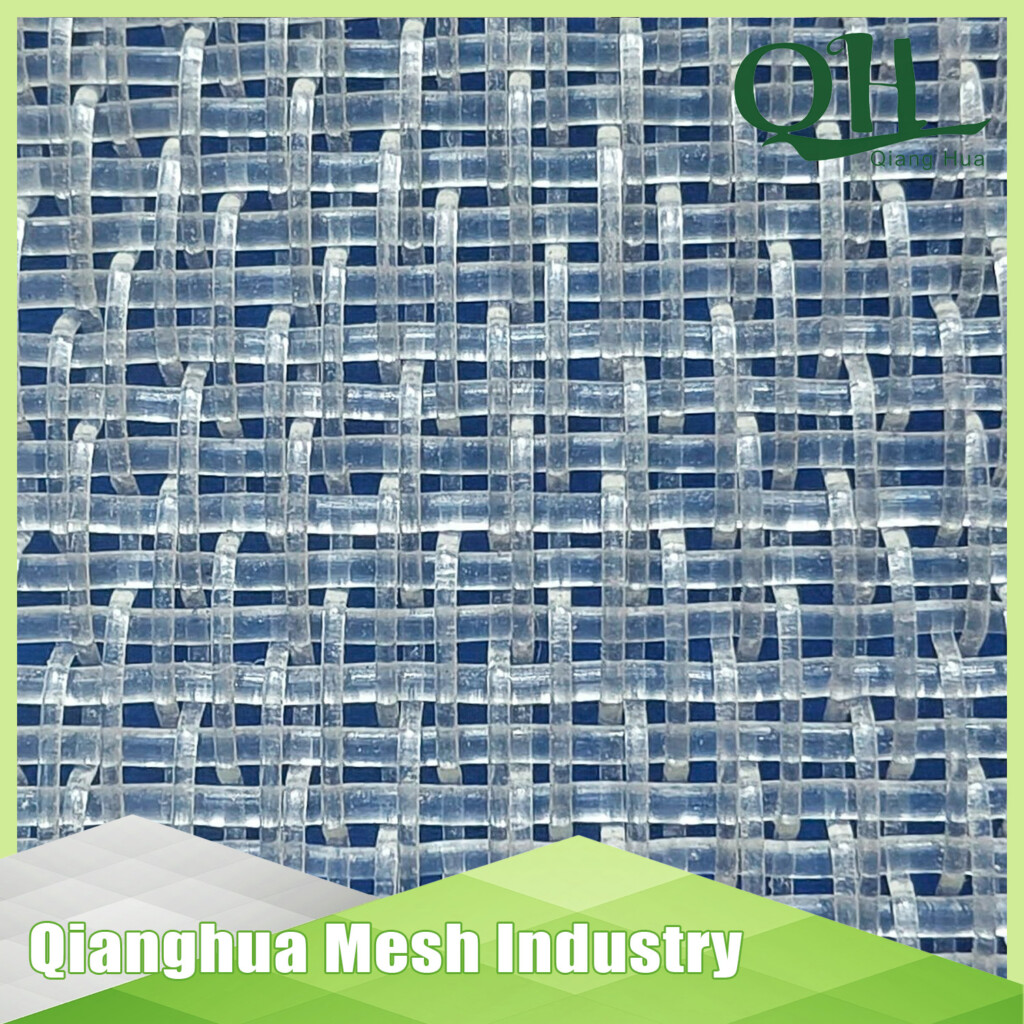

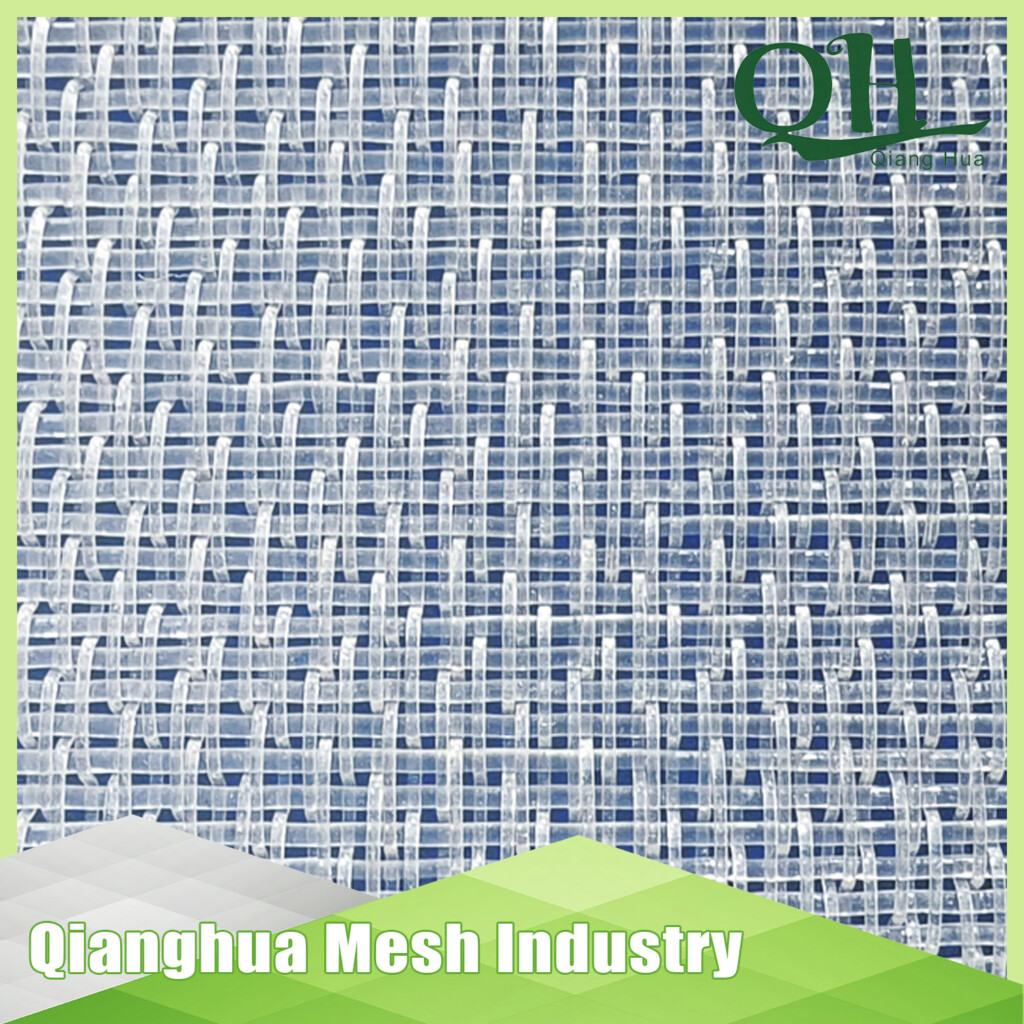

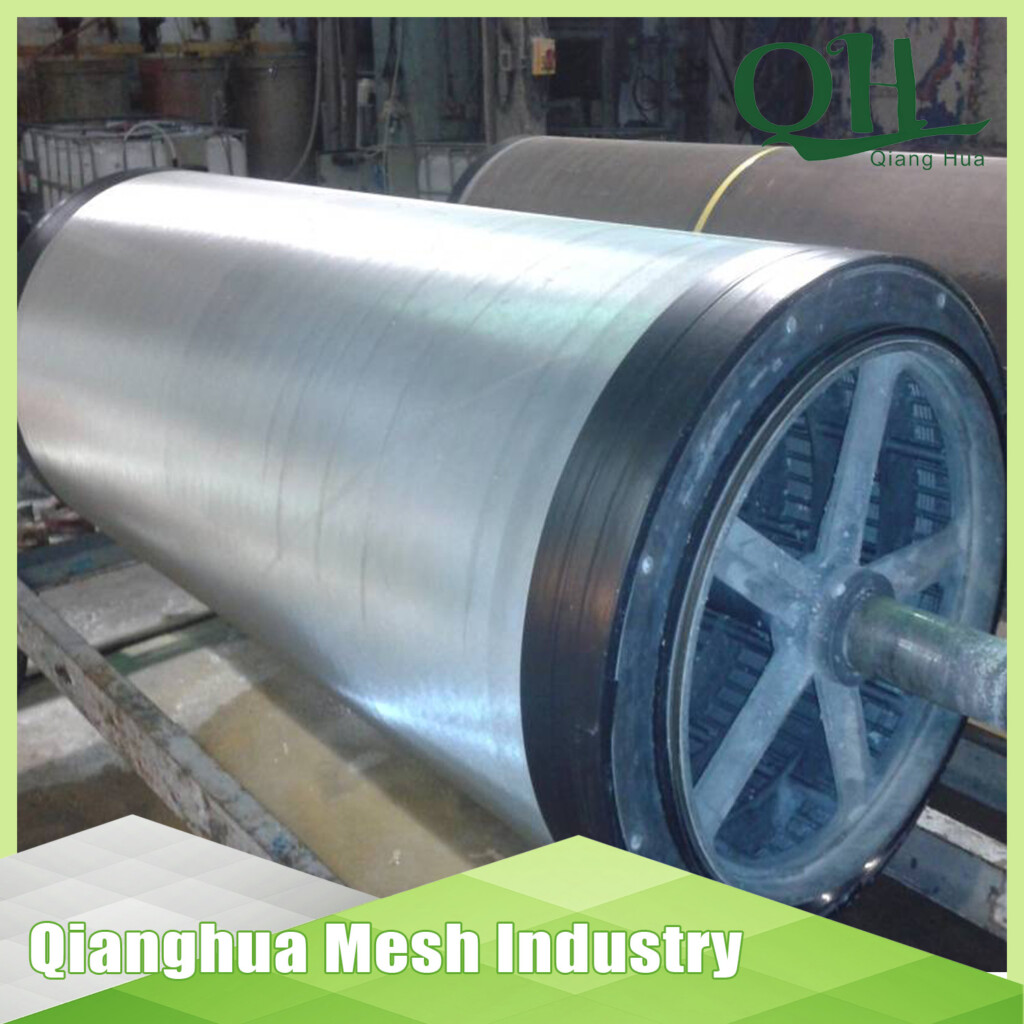

PVDF shrinks cover fabric used in Cylinder Mould paper making machine. We produce PVDF shrinks cover fabric against diameter of cylinder mould.
Including: Dia 1.25m, Dia 1.5m, Dia 1.75m, Dia 2.0m, Dia 2.5m. Range of mesh count: from 12 mesh up to 120 mesh count. Material: Polyester, Polyamide, Polyethylene. Color: White. Benefits: No seam marking, Flat surface, Not easily cracked, Long life time, Good air permeability. Application: Used in cylinder mould machine |
 |
 |

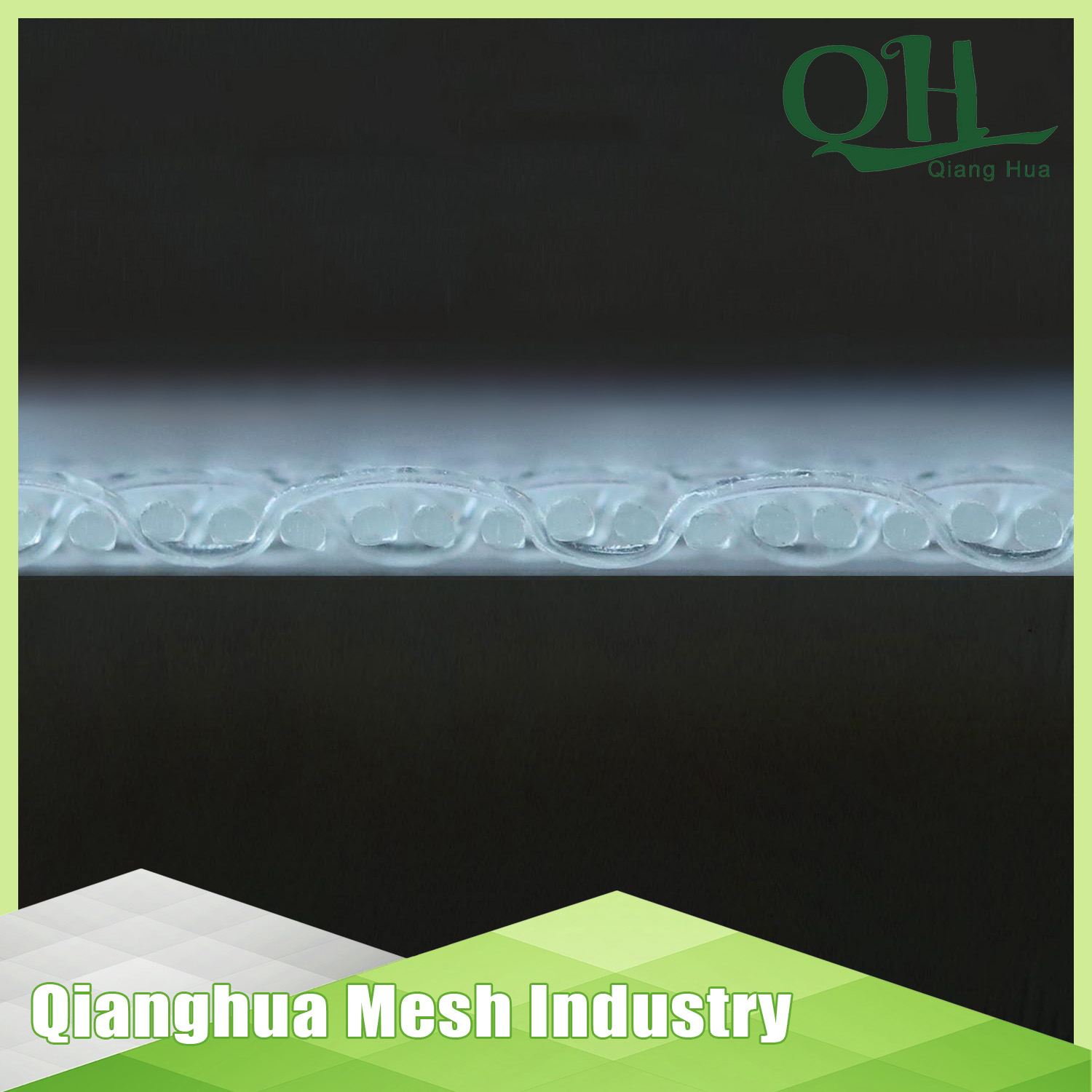

| Technical data sheet | Single layer |
| Material | polyvinylidene fluoride (PVDF) |
| Warp thread | 0.4mm |
| Weft thread | 0.5mm |
| Warp density | 14 thread/cm |
| Weft density | 8 thread/cm |
| Thickness | 1.12mm |
| Air permeability–at100Pa | 950CFM |
Our Factory
With over 40 years of experience, Qianghua Mesh specializes in the production of high-quality industrial fabrics.
Our state-of-the-art factory is equipped with advanced machinery and a skilled team, enabling us to deliver reliable and efficient solutions for a variety of industries.
Why Choose Us?
Advanced Technology: Our imported weaving machines ensure precision and high output.
Customization: Products are tailored to meet specific customer needs.
Global Reach: Trusted by customers in over 50 countries.
Sustainability: We are committed to eco-friendly production practices.
We take pride in delivering products that combine quality, innovation, and reliability.
Whether you’re in paper making, filtration, or other industries, Qianghua Mesh is here to support your success.
Contact us to learn more about how we can serve your business needs!
| Why Choose Our PVDF Shrinkable Fabrics?
1. Excellent Chemical Resistance: PVDF mesh can withstand exposure to acids, alkalis, and solvents, making it ideal for filtration and separation in demanding environments. |
 |
 |
PVDF (Polyvinylidene Fluoride) Shrinkable Fabrics is a high-performance material known for its exceptional durability and chemical resistance. It is widely used in industries requiring precision and reliability, especially in applications involving harsh environments. |
| Why Choose Our PVDF Shrinkable Fabrics?
1. Excellent Chemical Resistance: PVDF mesh can withstand exposure to acids, alkalis, and solvents, making it ideal for filtration and separation in demanding environments. |
|
|
PVDF (Polyvinylidene Fluoride) Shrinkable Fabrics is a high-performance material known for its exceptional durability and chemical resistance. It is widely used in industries requiring precision and reliability, especially in applications involving harsh environments. |
Qianghua mesh focused in pulp and paper industry, municipal wastewater treatment, juice production line, nonwoven production line, corrugated board production line and so on.
Main products: Forming fabrics, Dryer fabric, Press felt, Filter belt, belt for Nonwoven, Corrugator belt...
