HS Code: 59113200
Transport Package: Plywood Case, Pallet
Material: Polyester(PET), Polyamide(PA)
Max Width: 13.5m
Max length: 100m
Key word: Paper Machine Clothing, Forming Grid, Forming Mesh Wire, Forming Section Screen, High Speed Tissue Machine, Fourdrinier Paper Machine, Crescent Former Tissue Machine, Vacuum Cylinder, Packing Cardboard Mill, Recycled Short fiber Pulp, Printing Paper, Inner Board, Kraft Liner, Softwood Hardwood Cellulose Virgin Pulp, Duplex paper, Toilet Napkin
Technical data
 |

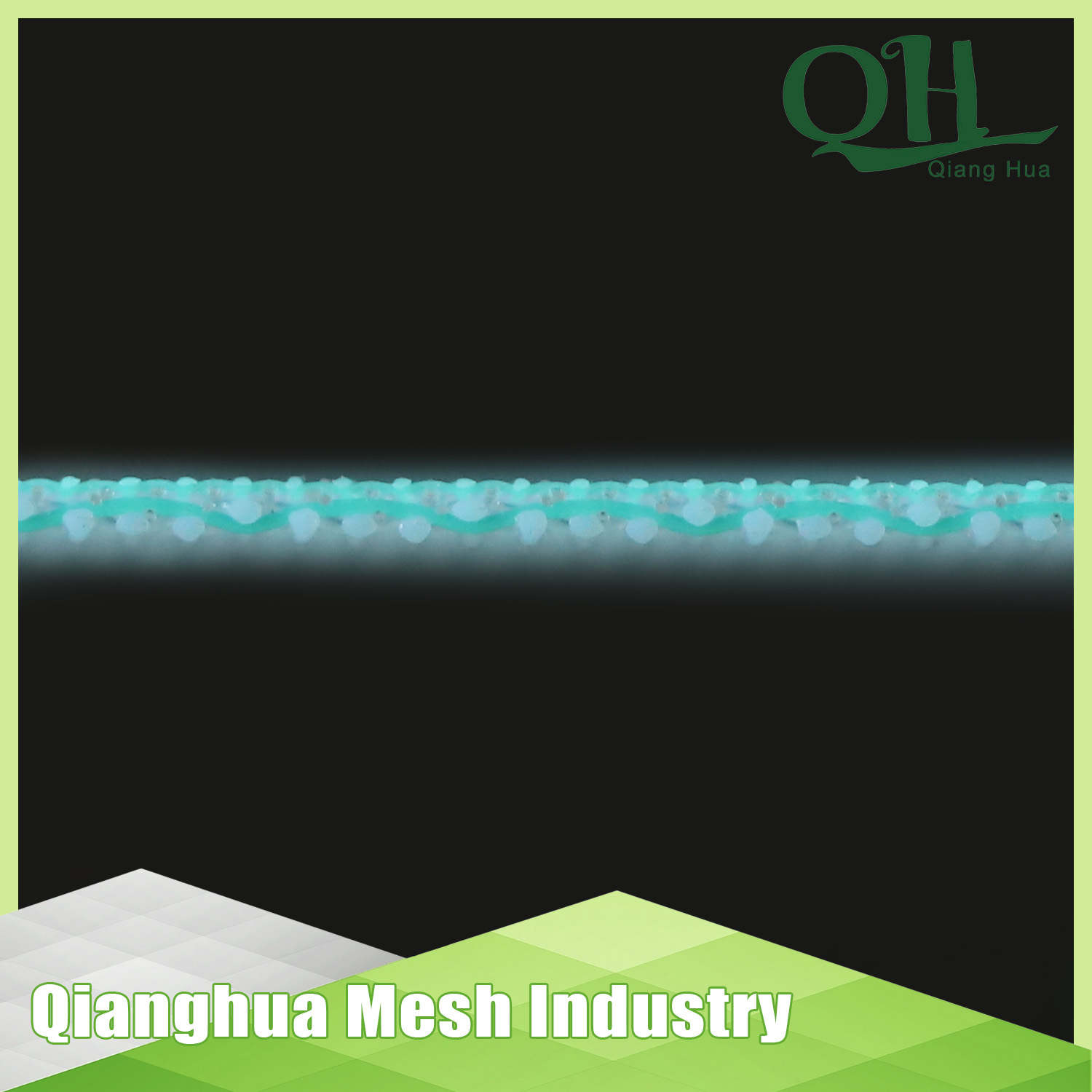

The forming fabric includes a paper surface and a machine surface, and the warp system is used to closely connect the paper surface and the machine surface into a whole, so that although the forming fabric is a multi-layer structure, there is no relative rubbing and sliding between layers, which fundamentally solves the contradiction between the paper surface and the wear surface. Application: High-speed tissue paper machine Benefits: The triple layer forming fabric has high technical requirements, and the water permeability and retention rate need to reach a perfect balance. Solve the contradiction between the paper surface and the wear surface. Speed: ≤2000 m/min |
 |
 |
| Item | Diameter ( mm ) | Density ( thread/cm ) | Air permeability (m3/m2h) | ||
| Warp | Weft | Warp | Weft | ||
| 3CSSB6020 | 0.13,0.18 | 0.13,0.13/0.27,0.28 | 60 | 53 | 6300 |
| 3CSSB6624 | 0.12,0.12 | 0.12,0.12/0.25,0.25 | 72 | 52.5 | 8300 |
Our Factory
With over 40 years of experience, Qianghua Mesh specializes in the production of high-quality industrial fabrics.
Our state-of-the-art factory is equipped with advanced machinery and a skilled team, enabling us to deliver reliable and efficient solutions for a variety of industries.
Why Choose Us?
Advanced Technology: Our imported weaving machines ensure precision and high output.
Customization: Products are tailored to meet specific customer needs.
Global Reach: Trusted by customers in over 50 countries.
Sustainability: We are committed to eco-friendly production practices.
We take pride in delivering products that combine quality, innovation, and reliability.
Whether you’re in paper making, filtration, or other industries, Qianghua Mesh is here to support your success.
Contact us to learn more about how we can serve your business needs!
| Why Choose Our Forming Fabrics?
Precise Sheet Formation: Designed for uniform and high-quality paper sheet formation.
|
 |
 |
 |
 |
Forming fabrics are a crucial component in the paper making process, used in the forming section of a paper machine. These fabrics play a key role in shaping and dewatering the paper sheet as it forms from the pulp. |
| Why Choose Our Forming Fabrics?
Precise Sheet Formation: Designed for uniform and high-quality paper sheet formation.
|
|
|
|
|
Forming fabrics are a crucial component in the paper making process, used in the forming section of a paper machine. These fabrics play a key role in shaping and dewatering the paper sheet as it forms from the pulp. |
Qianghua mesh focused in pulp and paper industry, municipal wastewater treatment, juice production line, nonwoven production line, corrugated board production line and so on.
Main products: Forming fabrics, Dryer fabric, Press felt, Filter belt, belt for Nonwoven, Corrugator belt...
