Product Details:
Payment & Shipping Terms:
|
| Material: | Polyester | Color: | Blue |
|---|---|---|---|
| Usage: | Used For Sludge Dewatering | Air Permeability: | 400 CFM |
| Seam Type: | Stainless Steel Clipper Seam , Spiral Seam , Endless Seam |

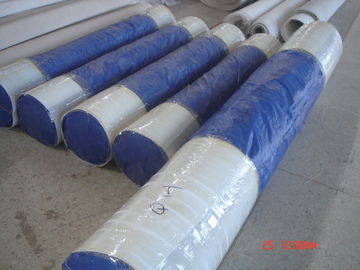

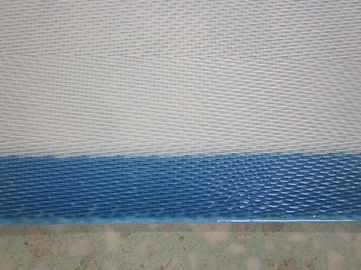

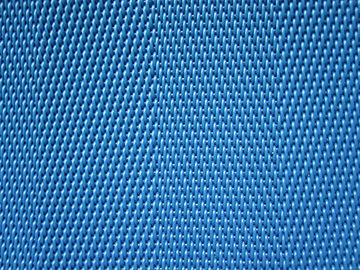

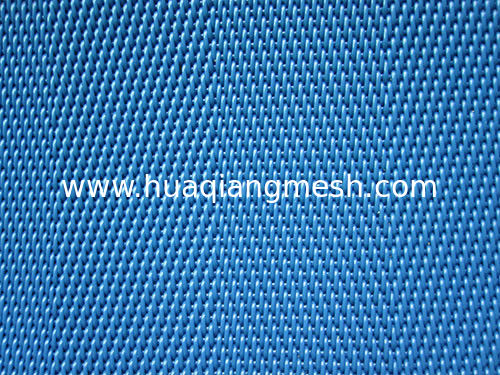

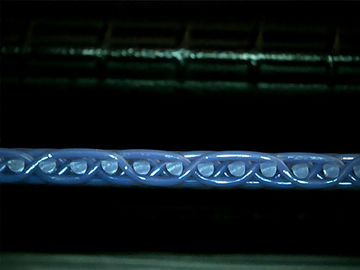

Sludge dewatering fabric is mainly used for municipal sludge dewatering ,industrial sludge dewatering ,sludge dehydration in sewage treatment facotries .They have the characteristics of good water permeability ,air permeability and non-revealed sludge ,acid-resisting,alkali-resisting,heat resistance.Because of their designing structure,the sludge can be peel off easily after filter ,so the screen are easily cleaned and have a long working time .
| Fabrics | Thread Diameter(mm) | Strength(N/cm) | Thickness (mm) |
Weight (kg/m2) |
Air permeability (m3/m2/h) |
|||||||
| Warp | Weft | Surface | Steel-clip joint | |||||||||
| S5075 | 0.5 | 0.7 | 2200 | 900 | 2.1 | 1.53 | 4120 | |||||
| S5035 | 0.5 | 0.9 | 2000 | 900 | 1.9 | 1.4 | 6800 | |||||
| S7095 | 0.7 | 0.9 | 2200 | 900 | 2 | 1.7 | 7920 | |||||
| S7096 | 0.7 | 0.9 | 3200 | 1200 | 2.263 | 1.52 | 6500 | |||||
| S9018 | 0.9 | 1.1 | 3600 | 900 | 2.6 | 1.6 | 9892 | |||||
| S9963 | 0.9 | 1.1 | 4500 | 1200 | 2.45 | 2.843 | 3081 | |||||
| S9626 | 1.2 | 1.2 | 3000 | 900 | 3 | 1.9 | 11152 | |||||
| S5059 | 0.4 | 0.5 | 2000 | 900 | 1.3 | 1.3 | 4568 | |||||
| S7097 | 0.7 | 1.0 | 2450 | 1200 | 2.34 | 1.65 | 8640 | |||||
