Paper Making Polyester Dryer Screen

China Paper Making Polyester Dryer Screen supplier
Paper Making Polyester Dryer Screen supplier Paper Making Polyester Dryer Screen supplier Paper Making Polyester Dryer Screen supplier Paper Making Polyester Dryer Screen supplier

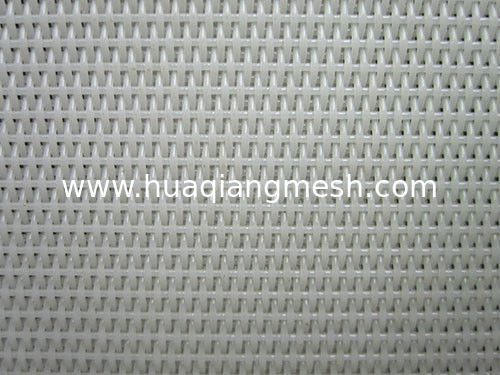

Large Image :  Paper Making Polyester Dryer Screen

Product Details:

Place of Origin: China
Brand Name: QH
Model Number: D6352

Payment & Shipping Terms:

Minimum Order Quantity: 1 m2
Packaging Details: Plastic bags; Plywood cases;Plywood pallet
Delivery Time: 7 days after we receive your prepayment
Payment Terms: T/T,Western Union,L/C
Supply Ability: 100000 m2 per month
Detailed Product Description
Terms Of Trade: EXW,FOB,CFR,CIF,FCA,CPT,CIP Transportation: By Sea,by Air,by EXPRESS
Material: Polyester Color: White,Red
Type: Woven



Polyester woven dryer fabrics/Polyester woven dryer screen

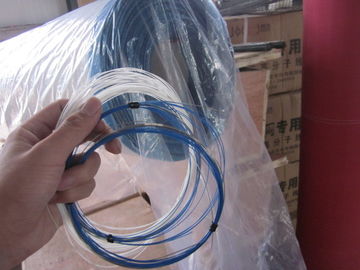

Woven dryer screen made from high grade flat monofilament and round monofilament polyester yarns.

According to the weaving, woven dryer fabric can be divided into 3-shed, 4-shed. According to the category,polyester dryer fabric can be divided into one and a half layer, double layer and rectangular wire fabric.

According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring joint.
3-shed one and a half polyester dryer fabric is suitable for drying papers below 70g.
4-shed double layer polyester dryer fabric is suitable for drying papers above 70g.

We offering for increased drying rate, improved paper quality and energy savings. It suitable for

the fore several heating box of the drying zone, quality papers can use all.

Material: Polyester,Teflon,PPS.

Color: White,Red.

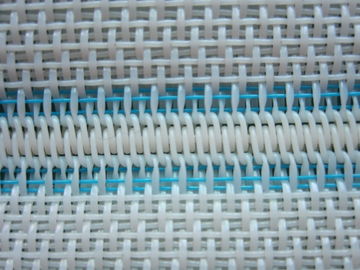

Seam type: Pin joint,Spiral seam.

Application:Used in the dryer section of paper machine to produce newprint paper, writing paper, carbonless paper, copper print, etc.



Technical data:

Type Fabrics
number
Thread
diameter(mm)
Strength
(N/cm)
Weight
(kg/m2)
Thickness
(mm)
Air
permeability
(m3/m2 h)
warp weft surface Ring joint
  spiral
joint
 Three-shed D6352 0.50 0.50   2000 900 1400 1.06 1.9 8000
 Four-shed D6442 0.50 0.50 2000 900 1400 1.26 2.1 12000
Round wire
dryer fabrics
D8006 0.50 0.70
0.30
2200 900 1500 1.3 1.75 6800
Flat wire dryer fabrics D8006-1 0.58
0.37
0.5
0.5
2000 800 1400 1.2 1.5 2500
D8006-5 0.29
1.00
  0.9/0.98 2600 900 1800 1.33 1.54 1920



Profucts Images

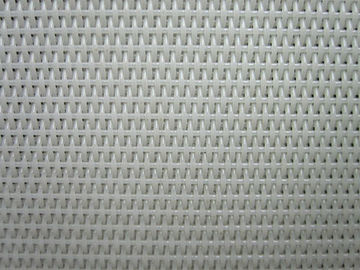

Paper Making Polyester Dryer Screen     Paper Making Polyester Dryer Screen
