Material: | Polyester | Color: | White/blue/red |
---|---|---|---|
Weave: | 2 Shed ,plain Weave 1/1 | Usage: | Used For Filtrate , Gold Mining Industry |

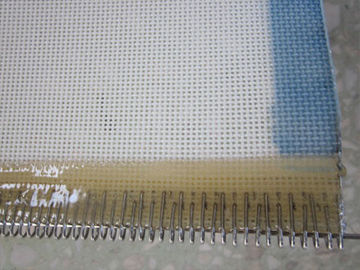

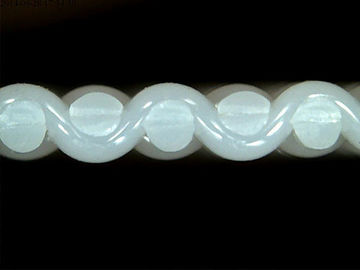

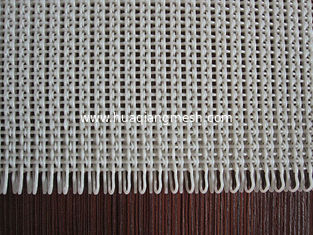

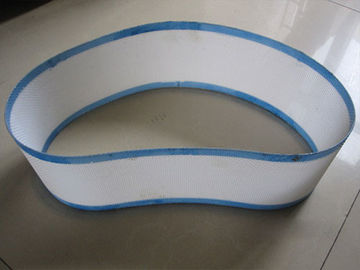

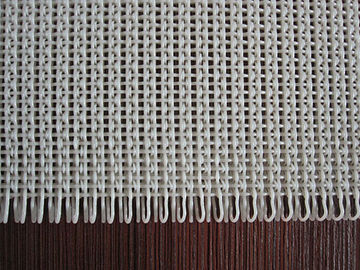

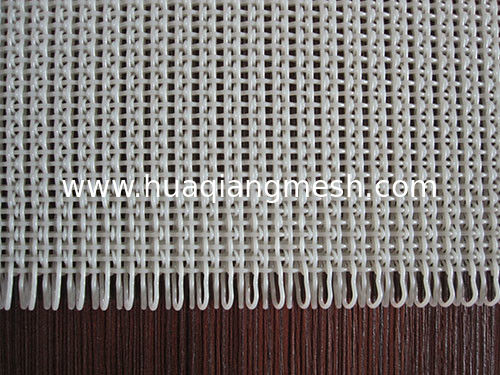

Seam Type: | Stainless Steel Clipper Seam,Endless Seam , Spiral Seam , Pin Seam . |

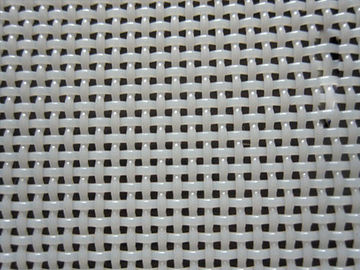

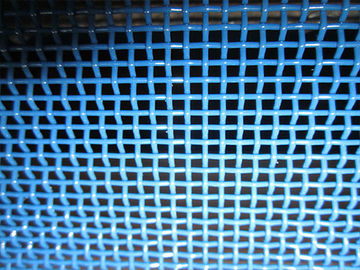

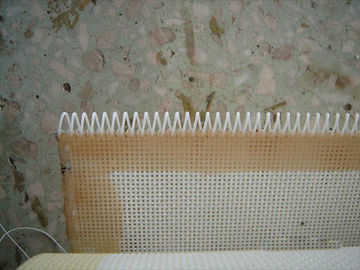

Our polyester plain weaving fabric is widely used for belt thickeners .
Benefits:Excellent drainage properties , very esay to clean ,high weave stability ,predefined uniform size of apertures .
Type | Fabrics number |
Thread diameter(mm) |
Strength (N/cm) |
weight (kg/m2) |
Thickness (mm) |
Air permeability (m3/m2h) |
||
warp | weft | surface | Ring joint spiral | |||||
2-shed | PW1133 | 1.0 | 1.0 | ≥1600 | 650 | 0.8 | 1.866 | 22251 |
PW1313 | 1.0 | 1.0 | ≥1600 | 650 | 0.78 | 1.9 | 22000 | |
PW2457 | 0.9 | 0.9 | ≥1600 | 650 | 0.55 | 1.7 | 20000 | |
PW2571 | 0.5 | 0.5 | ≥1600 | 900 | 0.48 | 0.85 | 10000 | |
PW2863 | 0.8 | 0.8 | ≥1600 | 900 | 1.1 | 1.454 | 4431 | |
PW2865 | 0.8 | 0.8 | ≥1600 | 900 | 0.85 | 1.452 | 10500 | |
PW2787 | 0.7 | 0.7 | ≥1600 | 900 | 0.77 | 1.30 | 11000 | |
PW2094 | 0.9 | 0.9 | ≥1600 | 900 | 0.71 | 1.7 | 19700 |
