large loop Spiral mesh

China large loop Spiral mesh supplier
large loop Spiral mesh supplier large loop Spiral mesh supplier large loop Spiral mesh supplier large loop Spiral mesh supplier large loop Spiral mesh supplier large loop Spiral mesh supplier

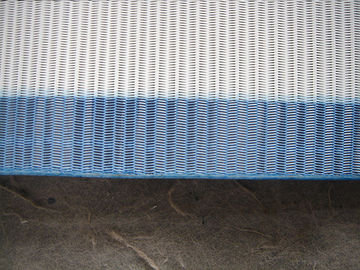

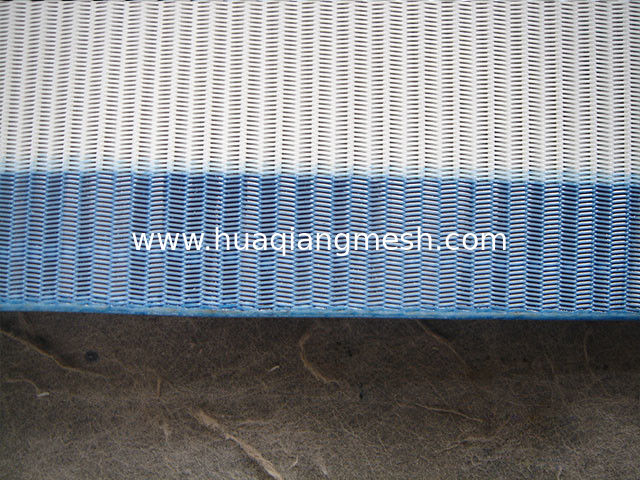

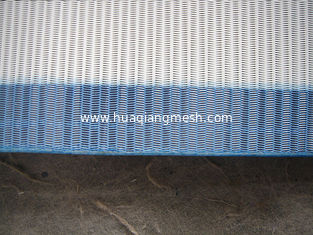

Large Image :  large loop Spiral mesh

Product Details:

Place of Origin: China
Brand Name: QH
Model Number: 1002

Payment & Shipping Terms:

Minimum Order Quantity: 1m2
Price: USD5-20/m2
Packaging Details: Plastic bags; pallet, Plywood cases.
Delivery Time: 7 days after we receive your prepayment
Payment Terms: T/T,Western Union,L/C
Supply Ability: 100000 m2 per month
Detailed Product Description
Material: Polyester, Teflon, Pps Color: White, Blue, Red, Orange, Green, Customizable
Benefits: Long Life Time, Stable, Even Tension Profile, Good Air Permeability, Abrasion Resistant, Smooth Belt Seam And Edges. Application: Dry Section Of Paper Machine, Used As Filter Media, Used As Conveyor Belt



Polyester spiral dryer fabric large loop / Polyester spiral belt / spiral mesh / polyester spiral fabric-----large loop


Polyester spiral belt with large loop is made from first-class monofilament, in reference to Finland Standard, has the characteristics of stable property and long work time.

It is widely used in producing of paper, corrugated paper, fluting, test linear paper, kraft paper, paper for train fare, also used in filtration and sieving in environmental protection, pharmaceutical, mine, metallurgy, machinery, airspace and other fields.
Major Use of polyester spiral dryer fabric:
Producing of paper, corrugated paper, paper for train fare.
filtration and separation of air, liquid and solid in various fields



item Diameter of wire Strength
(N/cm)
Thickness
(mm)
Weight
(kg/㎡)
Air  permeability
(m³/㎡h)
Spiral
wire
Pintle
wire
1001 0.9 1.1 2300 3.03 1.64 21000
1002 0.7 0.9 2000 2.45 1.4 18000
1003 0.7 0.9 2000 2.45 1.31 16000
1006 0.5 0.8 1800 1.87 0.97 15000



Polyester spiral dryer fabric with fillers /polyester spiral press filter cloth /spiral mesh with fillers /polyester spiral fabric with fillers---- large loop

The fillers are added into the spiral loops, in order to decrease the air permeability. The large loop spiral fabrics with fillers are usually used in belt press for water treatment, coal washing , sludge dewatering, etc.

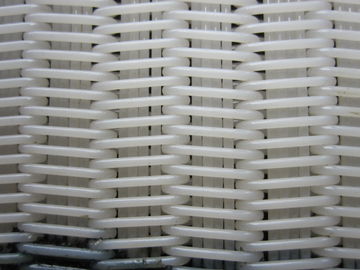

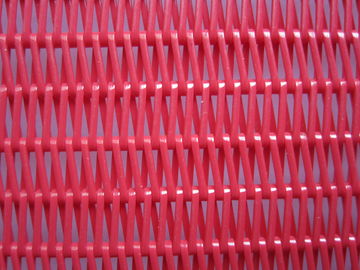

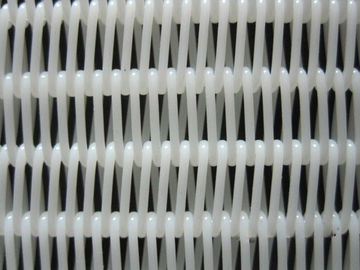

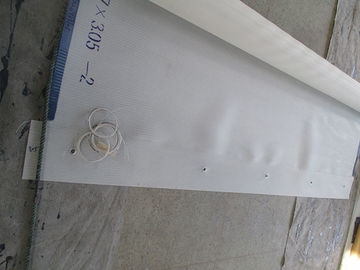

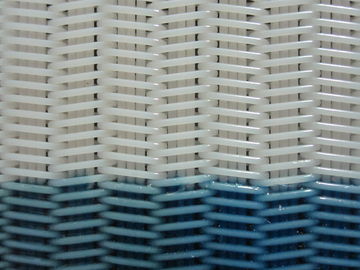

large loop Spiral mesh    large loop Spiral mesh
