Kraft Paper Making Forming Fabric

China Kraft Paper Making Forming Fabric supplier

Large Image :  Kraft Paper Making Forming Fabric

Product Details:

Place of Origin: China
Brand Name: QH
Model Number: 2B3616

Payment & Shipping Terms:

Minimum Order Quantity: 1 m2
Packaging Details: Plastic bags; Plywood cases;Plywood pallet
Delivery Time: 7 days after we receive your prepayment
Payment Terms: T/T,Western Union,L/C
Supply Ability: 100000 m2 per month
Detailed Product Description
Material: Polyester Type: Woven
Color: White,green,blue Seam: Endless
Edge: Coating Glue On The Edges Usage: Paper Making Industry
Terms Of Trade: EXW,FOB,CFR,CIF,FCA,CPT,CIP



Synthetic Forming Fabrics/Synthetic Forming Wire/Synthetic Forming Mesh



Aplication:

Used in the forming part of paper machine.

4-shed single layer Polyester forming fabric is standard type of polyester forming fabric in paper making, mainly used for producing cultural paper printing paper, packing paper and so on.

5-shed single layer Polyester forming fabric is suitable for making healthy, culture and packing papers etc.

8-shed single layer Polyester forming fabric is the most wear-resisting one in the single layer screen, which have long performance life, but mesh print is relatively deep. It is mainly used for copying the papermaking bag, craft paper, cardboard, corrugated paper and so on.

16-shed double and a half layer fabric is suitable for making quality printing paper, tissue paper and surface paper, inner paper and base paper of the board paper, etc;
Multi-shed three-layer polyester fabric is suitable for making quality printing paper, tissue paper and cigarette paper, etc.



Technical data

4-shed single layer

  Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
CXW27254 0.2 0.25 29.5-30.5 21.5-22.5 7000
CXW31204 0.18 0.2 34.5-35.5 27.5-28.5 6800

5-shed single layer

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
CXW25275 0.22 0.27 27.5-28.5 18.5-19.5 7500
CXW27275 0.2 0.27 29.5-30.5 23-24 6800

8-shed single layer

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
CXW25358 0.22 0.35 27.5-28.5 21.5-22.5 7800
CXW27458 0.20 0.40 29.5-30.5 19.5-20.5 7000

7-shed double layer

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
56177 0.17 0.17/0.20/
0.20
60 48 5200
57177 0.17 0.17/0.20/
0.20
65.7 49.6 4550

8-shed double layer

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
2C6208 0.15 0.16/0.19/0.19 68.5-69.5 51-52 6200
2C6408 0.15 0.18/0.20/0.20 70-71 52-53 5076
2C60188 0.18 0.19/0.20/0.20 66 49 4750

8-shed double and a half layer forming fabrics

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
2B5008 0.17 0.13/0.18/0.32/0.32 55-56 48-49 6500
2B6408 0.15 0.13/0.18/0.20/0.20 70-71 52-53 5100

16-shed double and a half layer forming fabrics

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
2B3616 0.25 0.20,0.30/0.50,0.50 39-40 38-39 7500
2B5616 0.17 0.13,0.20/0.35,0.35 63-64 56.5-57.5 5000

16-shed,20shed three layer forming fabrics

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
3WB3616 0.25/0.25 0.22,0.22/0.22/
0.55,0.55
40-41 38-39 6500
3WB5620 0.15/0.20 0.15,0.15/0.15/
0.25,0.25
63-64 60-61 6000
3WB6020 0.30/0.20 0.13,0.13/0.13/
0.25,0.25
69.5-70.5 71.5-72.5 5500



Are you looking for good manufacturer and supplier of forming fabrics?

Welcome to our factory.We are professional manufacturer of forming fabrics.

We have a wide range of forming fabrics.All forming fabrics quality is guaranteed. We also provide OEM service.

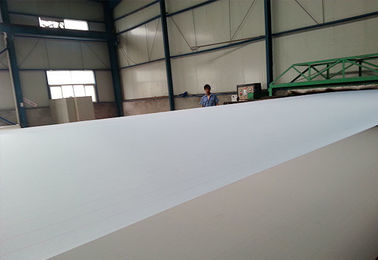

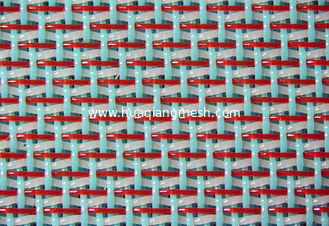

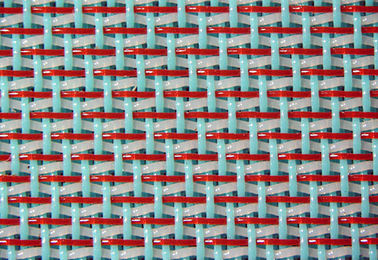

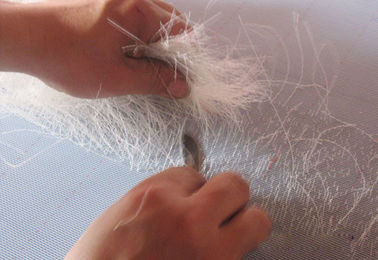

Product images

Kraft Paper Making Forming Fabric Kraft Paper Making Forming Fabric

Kraft Paper Making Forming Fabric Kraft Paper Making Forming Fabric
