Single layer forming fabric

I'm Online Chat Now

Single layer forming fabric

China Single layer forming fabric supplier

Large Image :  Single layer forming fabric

Product Details:

Place of Origin: China
Brand Name: QH
Model Number: CXW31204

Payment & Shipping Terms:

Minimum Order Quantity: 1 m2
Packaging Details: Plastic bags; Plywood cases;Plywood pallet
Delivery Time: 7 days after we receive your prepayment
Payment Terms: T/T,Western Union,L/C
Supply Ability: 100000 m2 per month
Detailed Product Description
Material: Polyester Type: Woven
Color: White,green,blue Seam: Endless
Edge: Coating Glue On The Edges Usage: Paper Making Industry
Terms Of Trade: EXW,FOB,CFR,CIF,FCA,CPT,CIP Transportation: By Sea,by Air,by EXPRESS,by Railway



Single Layer Forming Fabrics/Single Layer Forming Wire/Single Layer Forming Mesh



4-shed single layer Polyester forming fabric is standard type of polyester forming fabric in paper making, mainly used for producing cultural paper printing paper, packing paper and so on.

5-shed single layer Polyester forming fabric is suitable for making healthy, culture and packing papers etc.

8-shed single layer Polyester forming fabric is the most wear-resisting one in the single layer screen, which have long performance life, but mesh print is relatively deep. It is mainly used for copying the papermaking bag, craft paper, cardboard, corrugated paper and so on.



Technical data

4-shed

  Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
CXW27254 0.2 0.25 29.5-30.5 21.5-22.5 7000
CXW31204 0.18 0.2 34.5-35.5 27.5-28.5 6800

5-shed

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
CXW25275 0.22 0.27 27.5-28.5 18.5-19.5 7500
CXW27275 0.2 0.27 29.5-30.5 23-24 6800

8-shed

Model of fabrics   Thread diameter  mm   Density ( thread/cm)   Air permeability
(m3/m2/h)
warp weft warp weft
CXW25358 0.22 0.35 27.5-28.5 21.5-22.5 7800
CXW27458 0.20 0.40 29.5-30.5 19.5-20.5 7000



Are you looking for good manufacturer and supplier of single layer forming fabrics?

Welcome to our factory.We are professional manufacturer of single layer forming fabrics.

We have a wide range of single layer forming fabrics.All single layer forming fabrics quality is guaranteed. We also provide OEM service.

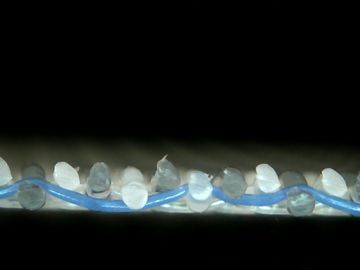

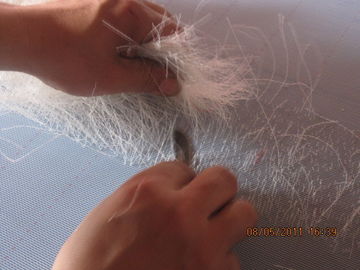

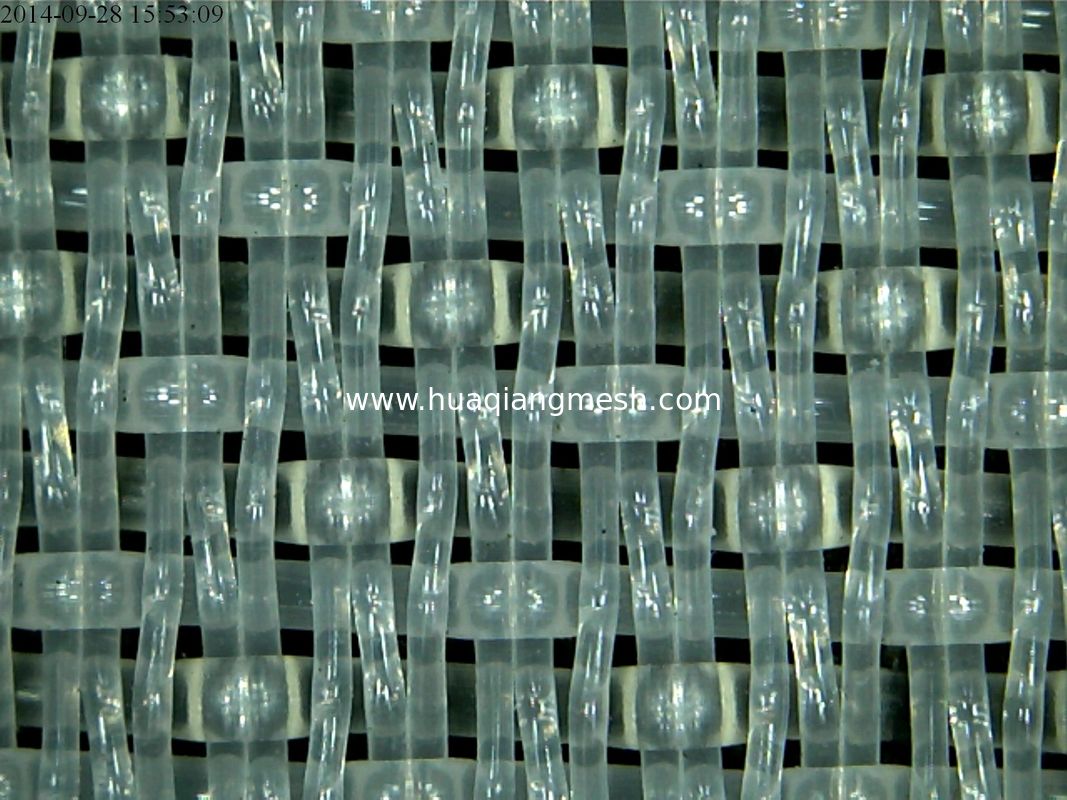

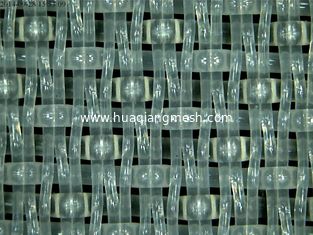

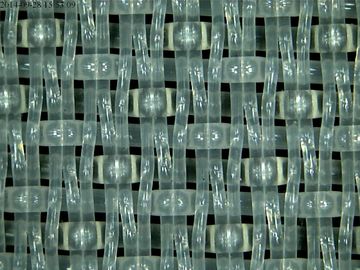

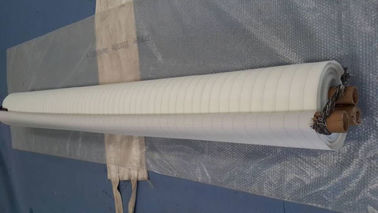

Product images

Single layer forming fabric
